Smart 450W

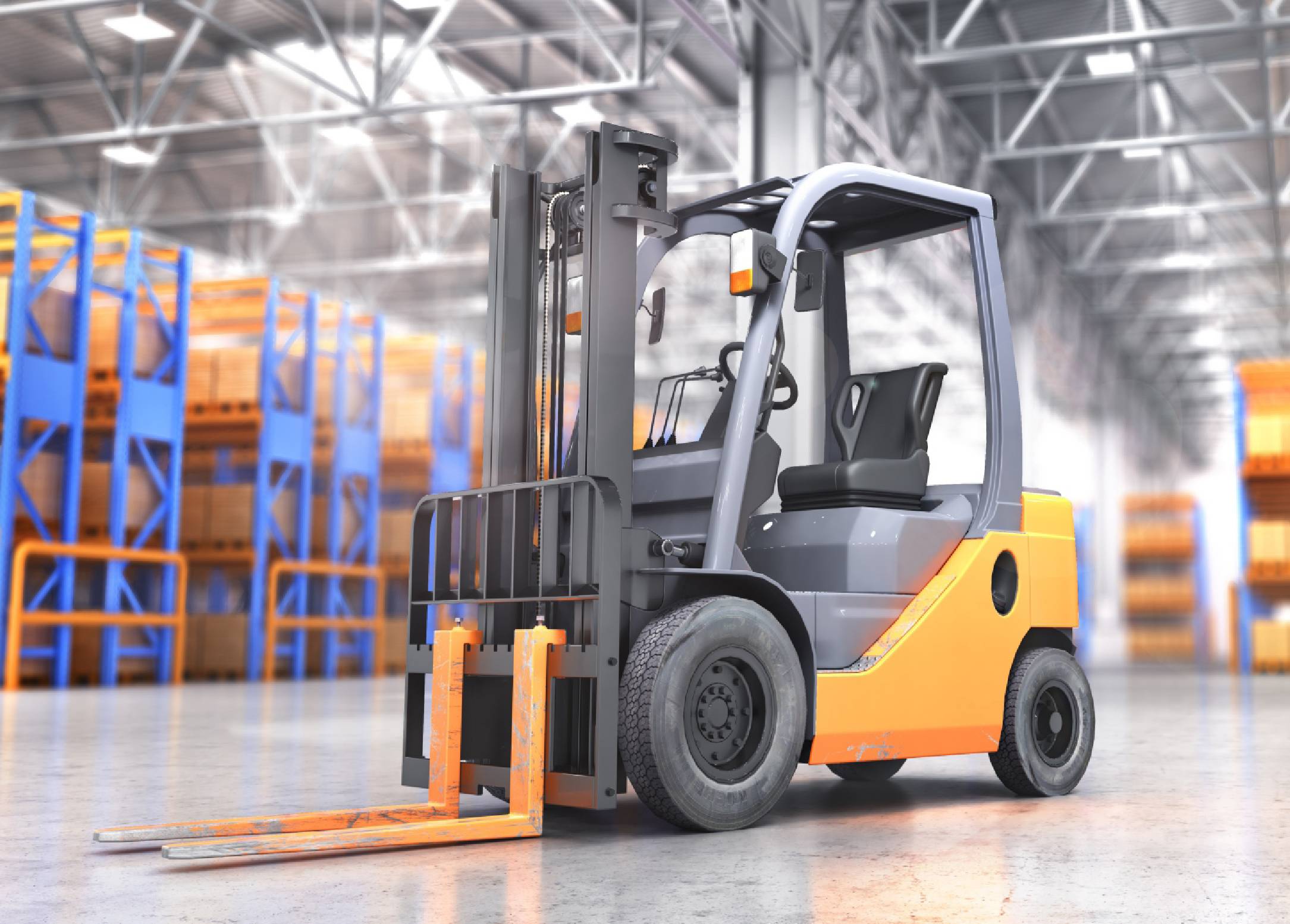

The Smart 450 serie of fan-cooled high frequency battery chargers feature wide-range AC input adapting to any single-phase grid worldwide with a peak efficiency of 92%, complying with CEC, possible to set Dip-swithches for output currents and charging profiles for various types of battery packs, widely used for floor machines, pallet stackers, pallet movers, utility vehicles, tow tractors, aerial work platforms, etc.

Highlighted Features:

User friendly LED indicators for AC source, battery status, charging, error.
Auto-recharge for low voltage in maintenance mode.
OEM customizable & feld replaceable AC/DC cabling.
Additional portable handle available.

Dimensions & Parameters

Safety & EMC

Battery Type Supported

Customization Flexibility

Clients & Case Study

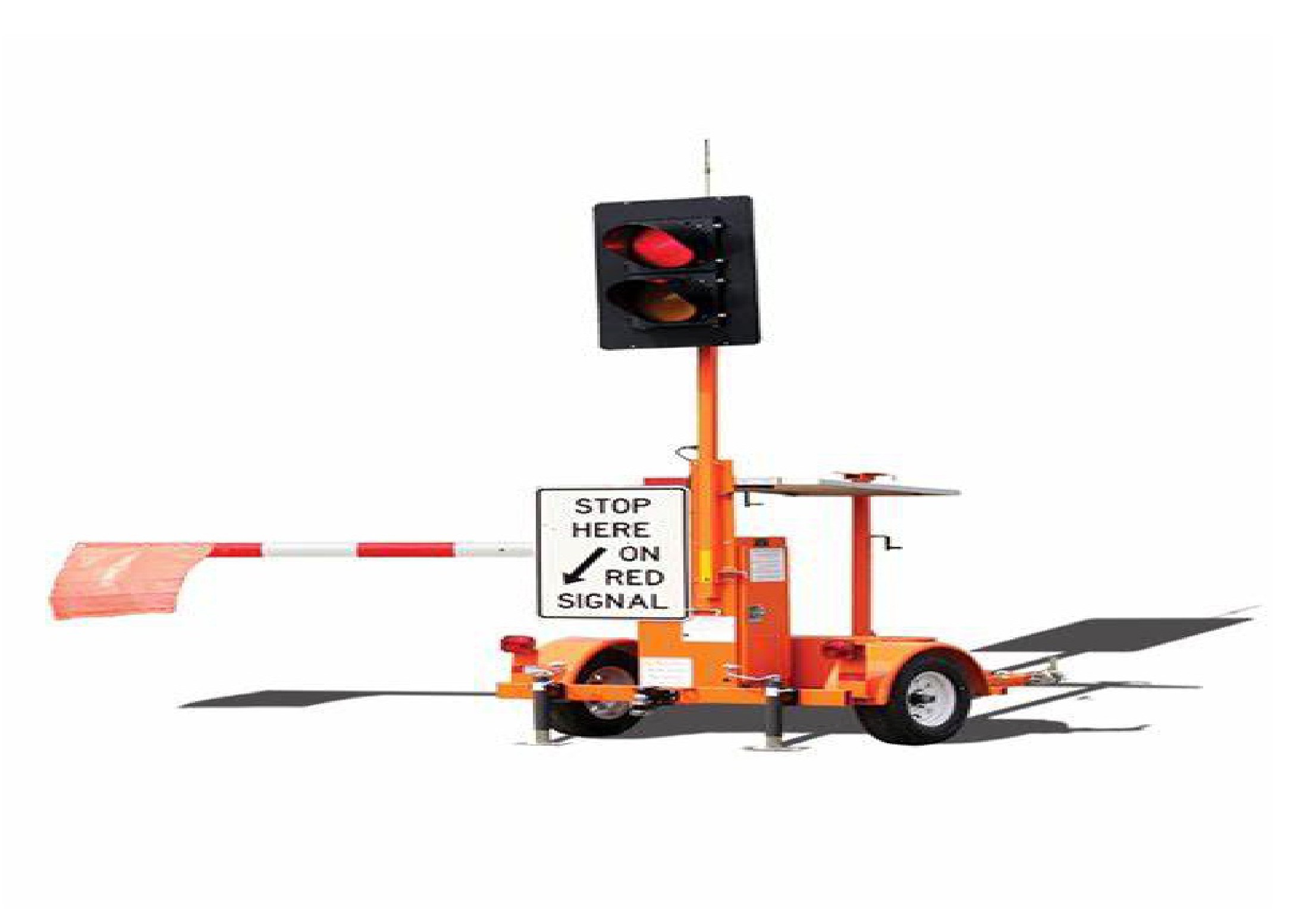

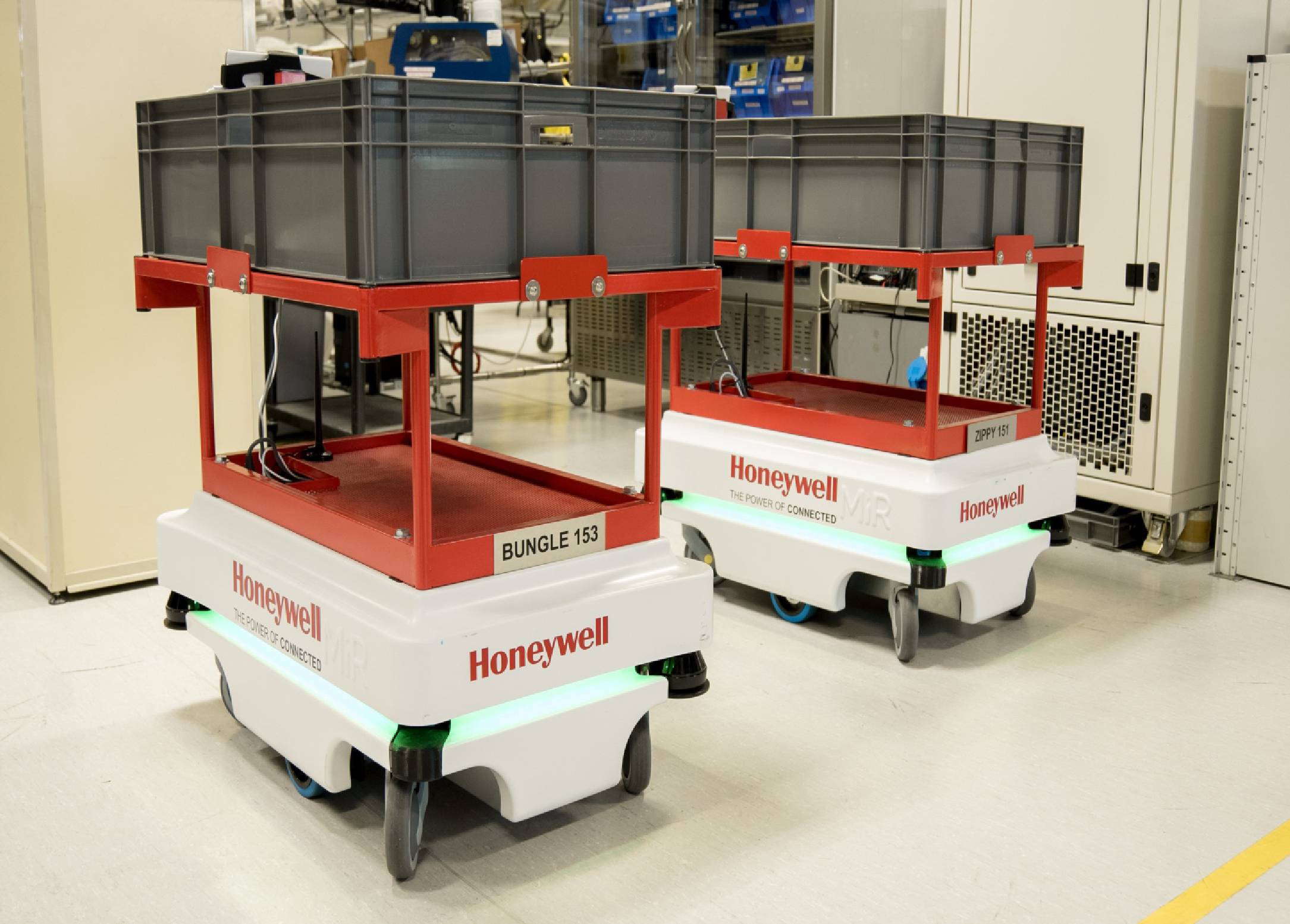

Application Of The Product

Product Data Download

Related Recommended Products

Dimensions & Parameters

DC Output	12VDC	24VDC	36VDC	48VDC
Max. DC output voltage	16.8V	33.6V	50.4V	67.2V
Max. DC output cuttent	25A	15A	10A	8A
Max. DC output power	450W
Deep discharge recovery (minimum voltage)	8V	16V	24V	32V
Max. C3 interlock current	7A

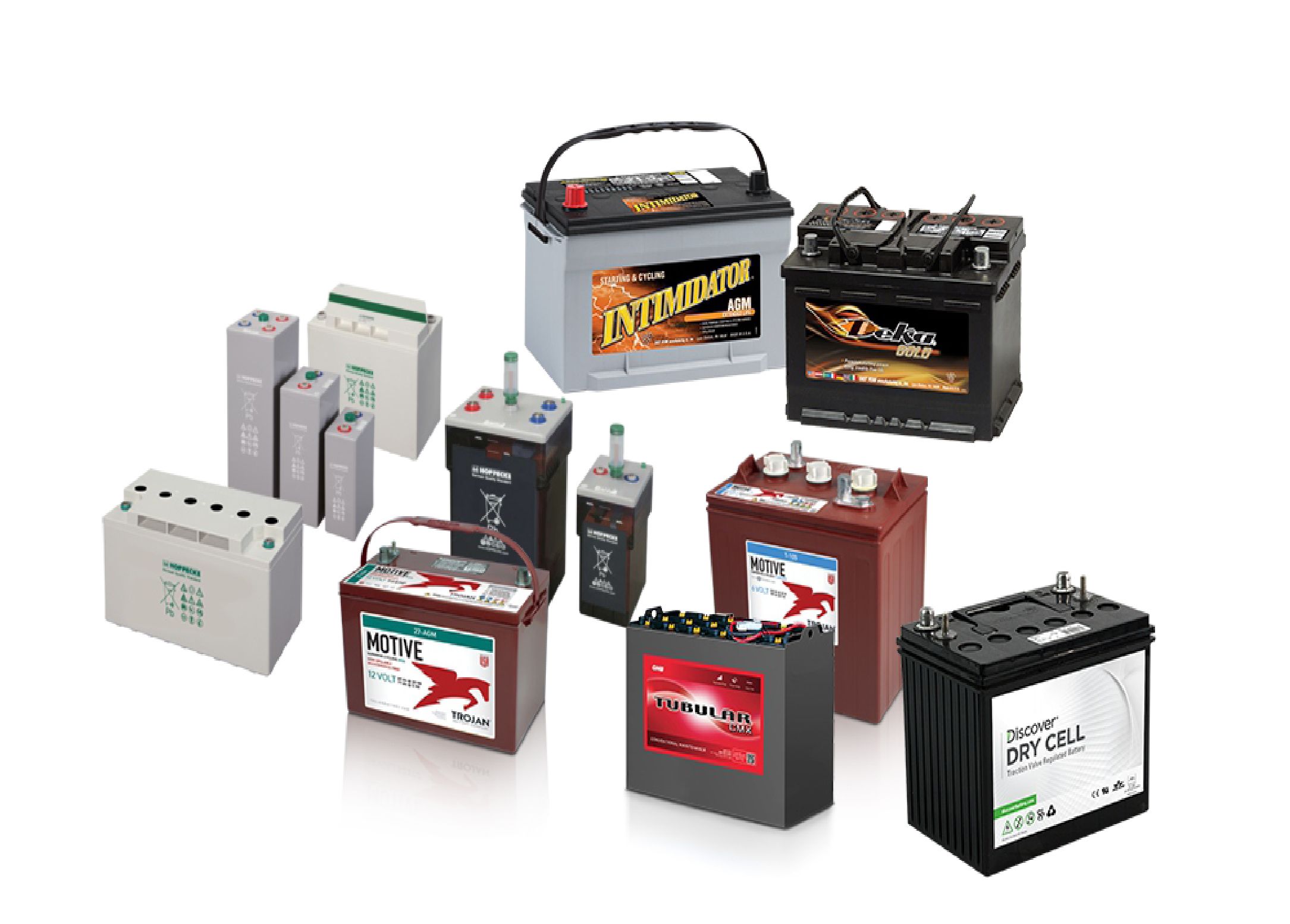

Battery type	Lead acid (wet / AGM / gel), lithium
Reverse polarity	Electronic protection with auto-reset
Short circuit	Electronic current limit

AC Input
AC input voltage range	85-270 VAC
Nominal AC input voltage	100-240VAC ±10%
Nominal AC input frequency	50 / 60Hz
Maximum AC input current	6A
Nominal AC input current	8A @ 100VAC	4A @ 240VAC
Power factor	>0.99 @ 120VAC	>0.98 @ 230VAC

Regulatory
Effciency	88% at full load, 120 VAC, 48 VDC \| 99% at full load, 240 VAC, 48 VDC
Safety (LVD)	UL1564, CSA 107.2, EN 60335-2-29
Emissions (EMC)	EN55014
Immunity (EMC)	EN 61000-3-2, EN 61000-3-3

Mechanical
Dimensions	L184.2 x W135 x H60 mm
Weight	1.8 kg
AC input connector	IEC320 / C14 (requires country-specifc cord)
DC output connector	Customizable
Communication	CAN bus 485 (optional)
Inhibit function	ON / OC
Cooling	Active cooling with fan (Variable speed)
